Photo |
Part # |
Description |
Price |
|
|
|||
|
|
4003-30 |
Rear axle collar, parkerized, made in USA (1930 & 1931 C singles & 45" twins) |
$7.00 |
|
|
|||
|
|
4037-30 |
Brake bracket nut, cadmium plated, made in USA (1930 & 1931 - 45" twins) |
$14.00 |
|
|
|||
|
|
4046-14 |
Brake band rivets, set of 9, made in USA. (1914 to 1930). |
$2.20 |
|
|
|||
|
|
4046-14a |
Brake band rivets, set of 11, made in USA. (1931 to 1934). |
$2.75 |
|
|
|||
|
|
4064-29 |
Brake rod adjusting nut, parkerized, made in USA ( Later 1929 to 1930 - singles & 45" twins) |
$28.00 |
|
|
|||
|
|
4064-29 |
Brake rod adjusting nut, cadmium plated, made in USA (1931 - singles & 45" twins) |
$28.00 |
|
|
|||
|
|
4065-35 |
Rear brake rod, parkerized, made in USA. (1935 to 1938 - 45" twins) |
$15.00 |
|
|
|||
|
|
4066-29 |
Rear brake rod spring (later 1929-1934 singles & twins) |
$6.00 |
|
|
|||
|
|
4068-14 |
Shifter rod end, cadmium plated, made in USA (1925 to 1936 twins (except 1936 - 61"), 1928 to 1934 singles) |
$20.00 |
|
|
|||
|
|
4068-29 |
Brake rod spring collars, parkerized, made in USA (1929 to 1934 - 45" twins & singles) Sold in pairs. |
$5.00 |
|
|
|||
|
|
4073-29A |
Brake arm clamp bolt, parkerized, made in USA (Later 1929 to 1931 singles & 45" twins, 1932 to 1934 - 21" singles) |
$2.50 |
|
|
|||
|
|
4073-35 |
Front brake rod, parkerized, made in USA (19356 to 1938 - 45" twins) |
$15.00 |
|
|
|||
|
|

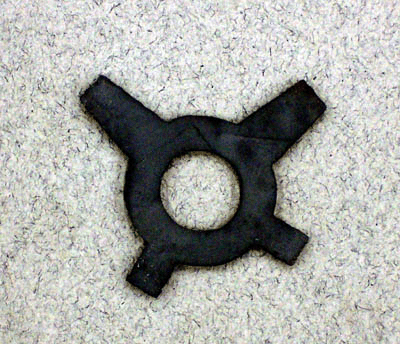

4078-26 |
Footbrake shaft lock washer, parkerized (1929-1934) Impossible to find elsewhere and imperative for an accurate restoration. |
$6.00 |
|
|
|||
|
|
4114-35 |
Brake linings and rivets, new old stock (later 1935 - 45" twins, rear, 1936 to 1940 - 45" twins, front & rear, 1941 - 45" twins, front) |
$17.00 |
|
|
|||
|
|
4117-30 |
Front hub stabilizer. Made in the Netherlands. (1930-1952) |
$25.00 |
|
|
|||
|
|
4118-29 |
Front stabilizer spring washer. Made in the Netherlands. (1929-1952) |
$6.00 |
|
|
|||
|
|
4121-29 |
Front stabilizer cover. Made in the Netherlands. (1929-1952) |
$12.00 |
|
|
|||
|
|
4124-31A |
Operating stud grease nipple, parkerized, made in USA (1931 to 1936 - 45", 74" & 80", 1937 - 45" twins, 1930 to 1934 C singles) |
$8.00 |
|
|
|||
|
|
4125-28A |
Brake shoe spring, new old stock (1929 to 1952 - 45" twins) |
$7.00 |
|
|
|||
|
|
4133-31 |
Brake shackle fork stud, cadmium plated, made in USA (1931 to 1936 - 45", 74" & 80", 1937 to 1939 - 45" twins, 1931 to 1934 C singles) Includes stud, 0224 flat washer, 0261 lock washer, 0127 hex nut and 0291 cotter pin. Click on small photo to see complete part. |
$30.00 |
|
|
|||
|
|
4140-29 |
Grease nipple extension. Made in the Netherlands. (1929-1952) |
$12.00 |
|
|
|||
|
|
4140-29 kit |
grease nipple extension kit, made in USA. (Later 19298 to 1952 - 45" twins) Includes late style grease nipple, grease nipple extension and grease drain. |
$13.00 |
|
|
|||
|
|
4142-30 |
Front brake cable oiler. (Late 1930-1948) |
$22.00 |
|
|
|||
|
|
BL-29 |
Brake linings and rivets (Early 1929) |
$25.00 |
|
|
|||
|
|
BL-30 |
Brake linings and rivets (Later 1929 -1930) |
$25.00 |
|
|
|||
|
|
BL-31 |
Brake linings and rivets (1931-1934) |
$25.00 |
|
|
|||
|
|
4143-28 |
Front brake coil, nickel, made in USA (1929-Mid 1930) |
$26.00 |
|
|
|||
|
|
4143-30c |
Front brake coil, cotten braid, 48"+ long, made in USA (Mid 1930-1948) |
$42.00 |
|
|
|||
|
|
4145-28 |
Front brake inner cable, made in USA (1929-later) |
$8.00 |
|
|
|||
|
|
4149-28 |
Front brake lever, complete, exact reproduction, made in USA. (1928 - 1940) |
$200.00 |
|
|
|||
|
|
4160-28 |
Front brake cable clamp, made in USA (1928-1960) |
$10.00 |
|
|
|||
|
|
4162-30 |
Front brake coil clip, parkerized, made in USA. (1930 to 1957) |
$9.00 |
|
|
|||
|
|
4163-30 |
Control coil clamp, parkerized, made in USA. (1930 to 1939 - 45" twins, 1930 to 1936 - 74" & 80" twins) |
$24.00 |
|
|
|||
|
|
4165/4166-28 |
Front brake control coil adjusting sleeve and nut, parkerized, made in USA (1928 to 1940) |
$11.00 |
|
|
|||
|
|
4170-28 |
Control wire lower connection for front brake cable, made in USA (1928 to 1940) |
$20.00 |
|
|
|||
|
|
4404-29 |
Battery box and cover, bare, made in USA. (1929 to 1952 - 45" twins) These are like the original and do not include the cut-out for a vent tube. |
$75.00 |
|
|
|||
|
|
4416-30 |
Battery box clamp, parkerized, made in USA. (1930 & 1931 - 45 singles & twins, 1932-1934 singles) |
$26.00 |
|
|
|||
|
|
4417-29 |
Rear bolt plate, parkerized, made in USA. (1929 to 1934 singles, 1929 to 1937 - 45" twins) |
$6.00 |
|
|
|||
|
|
4433-23 |
Battery post kit including nuts and felt washers. (1926-1963) |
$12.00 |
|
|
|||
|
|
4521-26 |
Ignition key, made in USA (1926-1936) |
$2.50 |
|
|
|||
|
|
4544-28A |
Tail lamp connection clamp, parkerized, made in USA. (1928 to 1936 - 45 twins & singles) This clamp attaches to the seat post tube and is used for the tail lamp wire terminal. |
$24.00 |
|
|
|||
|
|
4567-29 |
Switch lamp bulb, dual-contact (1929 to 1931, 1932 to 1936 - 45" , 74" & 80" twins & C singles) |
$4.00 |
|
|
|||
|
|
4718-15 |
Small copper tubing for tail light wire under rear fender (1915-1933) Used on 45s from 1929 through 1933. |
$7.50 |
|
|
|||
|
|
4720-15 |
Small rubber tubing used over tail lamp wire at rear fender (1915-1933) 12" piece can be cut to length. |
$2.50 |
|
|
|||
|
|
4727-23 |
Wire clamp, parkerized, made in USA (1926 to 1933 singles & 45" twins) This clamp is used to secure the tail lamp copper tubing to the left upper frame stay. |
$10.00 |
|
|
|||
|
|
4728-25 |
Wire retaining clamp, made in USA (1929 to 1939 twins) Two required, one on front down tube and one on seat post. |
$11.00 |
|
|
|||
|
|
4730-30A |
Wire retaining clamp, used around frame head, made in USA (1929 to 1936 - 45" & 61" twins & singles) |
$12.00 |
|
|
|||
|
|
4735-30 |
Wiring harness for 1930 models including the extra wires for twin headlights, complete with wiring diagram, made in USA (1930) Can be modified for 1929. |
$65.00 |
|
|
|||
|
|
4735-31 |
Wiring harness for DL & RL models with single headlight, complete with wiring diagram, made in USA (1931-1936) Can be modified for 1929. |
$60.00 |
|
|
|||
|
|
4760-26 |
Horn button, complete, chrome plated with cloth covered wire. (1926 - 1957) |
$24.00 |
|
|
|||
|
|
4760-29 |
Light switch complete, identical to original with cloth covered wires, made in USA (1929 to 1957 all models) |
$24.00 |
|
|
|||
|
|
4785-26 |
Electronic 2-post cut-out relay without cover. (1926 to 1937) |
$95.00 |
|
|
|||
|
|
4786-26 |
Cut-out relay cover with "Delco-Remy" logo for 2-post relays. (1926 to 1937) |
$40.00 |
|
|
|||
|
|
4787-26 |
Relay mounting screws and lock washers, parkerized, made in the Netherlands (1926 to 1957) |
$6.00 |
|
|
|||
|
|
Headlamp kit |
Headlamp restoration kit, complete for single headlamp models, includes special bolts to replace rivets, cadmium plated (1935-1957) |
$22.00 |
|
|
|||
|
|
4863-31 kit |
Horn mounting kit, parkerized, made in USA (1939 - 61" & 74" twins, all 1930 to 1941 - 45" twins) Kit includes (4) #4861-29 horn bracket springs, (8) #4862-29 staright spring plate, (8) #4862-31 curved spring plate, (4) #4884-31 horn mounting screws,(4) #031 round head screws, (12) #0104 hex nuts and (12) lock washers. |
$48.00 |
|
|
|||
|
|
4927-15 |
Tail lamp bulb, 6 volt, single contact for use without a brake switch. (1915 - 1939) |
$4.00 |
|
