Photo |
Part # |
Description |
Price |
|
|
|||
|
|
3060-26 |
Rear stand mounting kit, includes two each Shoulder bolt #3060-26, shoulder washers, spring #3061-24, lock washer #0261, nut #0129. (1929-1937) |
$14.00 |
|
|
|||
|
|
3111-29 |
Seat bar clevis pin #3111-29 and clevis pin spring #3112-29 (1929-later) |
$10.00 |
|
|
|||
|
|
3113-29 |
Seat post bushing, made in USA (1929 to 1957) |
$8.00 |
|
|
|||
|
|
3138-29A |
Cushion spring guide collar, made in USA. (later 1929 to 1930, 1931 to 1957 heavy springs) |
$12.00 |
|
|
|||
|
|
3138-31 |
Cushion spring guide collar, made in USA. (1931 to 1957) |
$12.00 |
|
|
|||
|
|
3144-25 |
Seat post lock nut with #0269 lock washer, cadmium plated (1925-1957) |
$6.00 |
|
|
|||
|
|
3181-25P |
Mesinger No. 3 seat pan with stud #3205-25. Accurate reproduction made in Poland. (1925 - 1933 all models) |
$85.00 |
|
|
|||
|
|
3193-18 |
Mesinger No. 3 tension spring cap, made in Poland. (1918 - 1930 twins) |
$12.00 |
|
|
|||
|
|
3203-25 |
Mesinger No. 3 tension spring, made in Poland. (1918 - 1930 twins) |
$47.00 |
|
|
|||
|
|
3310-09 |
Handlebar grips, black with the "Harley-Davidson" and "Made in U.S.A." logos like the originals (1929-1934) Price per pair. |
$22.00 |
|
|
|||
|
|
3310-35 |
Handlebar grips, white with the "Made in U.S.A." logo (1935-1948) These are the correct color for the early 45's. Price per pair. |
$20.00 |
|
|
|||
|
|
3310-35bk |
Handlebar grips, black with "Harley-Davidson" logo (1935 & 1948) Price per pair. |
$20.00 |
|
|
|||
|
|
3316-31 |
Handlebar plungers (1931-1935) Price per pair. |
$25.00 |
|
|
|||
|
|
305-15 |
Handlebar plunger pin (1916-1948) |
$1.50 |
|
|
|||
|
|
3320-10 |
plain roller, two required (1911-1973) |
$1.50 |
|
|
|||
|
|
3321-31 |
Plain roller block, two required (1931-1948) |
$1.75 |
|
|
|||
|
|
3322-31 |
Wire fastening screw, made in USA (1926 to 1934 singles, 1931 to 1948 - 45" twins) |
$2.25 |
|
|
|||
|
|
3322-31a |
Handlebar roller kit. Contains 2 each #3320-10, #3321-31, #3322-31, #3333-31, #3324-09 & #305-10 (1931-1948) |
$13.00 |
|
|
|||
|
|
3324-09 |
Control wire end, two required (1911-1948) |
$1.00 |
|
|
|||
|
|
3326-09 |
Throttle & spark inner wire, made in USA (1911-1939) |
$2.00 |
|
|
|||
|
|
3330-10 |
Handlebar end nuts, parkerized (1911-1930) priced per pair |
$12.00 |
|
|
|||
|
|
3330-31 |
Handlebar end nuts, parkerized (1931-1939) priced per pair |
$12.00 |
|
|
|||
|
|
3333-31 |
Control coil plug set screw, made in USA (1926 to 1934 singles, 1931 to 1950 - 45" twins) |
$1.25 |
|
|
|||
|
|
3334-12 |
Throttle & spark control coil, nickel, made in USA (1912-1931) |
$26.00 |
|
|
|||
|
|
3334-32c |
Throttle & spark control coil, cotten braid, 48"+ long, made in USA (1932-1948) |
$42.00 |
|
|
|||
|
|
3341-28 |
Control coil adjusting sleeve, parkerized, made in USA (1928 to 1936) These re used on the front control coil bracket #3392-29. Sold as a pair. Requires #0129 nuts that must be ordered separately. |
$10.00 |
|
|
|||
|
|
3341-28 |
Control coil adjusting sleeve, cadmium plated, made in USA (1928 to 1936) These re used on the front control coil bracket #3392-29. Sold as a pair. Requires #0129 nuts that must be ordered separately. |
$12.00 |
|
|
|||
|
|
3341-29 |
Lower control coil adjusting sleeve, parkerized, made in USA (1929 to 1933 - 45" twins, 1930 to 1936 - 74" & 80" twins) This is used on the gear cover. Includes #0129 nut. |
$10.00 |
|
|
|||
|
|
3343-09 |
Control coil nuts, nickel plated, set of 4, made in USA. (1911 to 1930 - all models) The kit includes 4 nuts, enough to do both control coils. |
$12.00 |
|
|
|||
|
|
3344-26 |
Control coil clamp, left, cad plated, made in USA (1929-1939) |
$4.00 |
|
|
|||
|
|
3345-26 |
Control coil clamp, right, cad plated, made in USA (1929-1939) |
$4.00 |
|
|
|||
|
|
3362-29 |
Control connection block, parkerized or cadmium plated (1929-1936) Back ordered |
$21.50 |
|
|
|||
|
|
3392-29 |
Control coil bracket, front, parkerized, made in USA (1929 - 45" twins, 1930 & 1931 all twins) |
$45.00 |
|
|
|||
|
|
3392-32 |
Control bracket, parkerized, made in USA. (1932 to 1936, all models) |
$28.00 |
|
|
|||
|
|
3452-30A |
Tool box, primered and ready for paint. Outstanding reproduction from Europe (1930) |
$225.00 |
|
|
|||
|
|
3452-31A |
Tool box, primered and ready for paint. Outstanding reproduction from Europe (1931-1934) |
$325.00 |
|
|
|||
|
|
3464-26 |
Tool box key, new old stock, re-parkerized. (1926 to 1954) |
$15.00 |
|
|
|||
|
|
3475-31 |
Tool box bracket bolt with nuts and washers, parkerized, made in USA. (1931 to 1934 C singles & 45" twins, 1935 & 1936 - 74" twins) |
$17.00 |
|
|
|||
|
|
3505-26 |
Tank buffers, exact reproduction made from new old stock original part, made in USA. Price each. (1926 to 1934 singles, 1929 to 1937 - 45" twins). |
$11.50 |
|
|
|||
|
|
3507-16 |
Gas tank filler cap, nickel plated, made in USA, price each (1916 to 1934 - 45" twins) |
$28.00 |
|
|
|||
|
|
3507-35 |
Gas tank filler cap, Chrome plated, made in USA, price each (1935 & 1936 - 45" twins) |
$30.00 |
|
|
|||
|
|
3529-10 |
Tank clip screws, made in USA. (1911 to 1936) Includes 2 each cadmium plated screws, #3530-25 spacers, #0108 hex nuts and #0257 lock washers. |
$22.00 |
|
|
|||
|
|
3532-18 |
Top of tank screws, six nickel plated screws, washers and paper washers included. (1919-later) 7/32"-32 threads as original. |
$22.00 |
|
|
|||
|
|
3532-18S |
Top of tank screws, six nickel plated screws, washers and paper washers included. (1919-later) Oversize 1/4"-28 threads. |
$22.00 |
|
|
|||
|
|
3571-29 |
Drive case oil pipe (1929-1931). |
$25.00 |
|
|
|||
|
|
3571-34A |
Drive case oil pipe (1934-1936) |
$25.00 |
|
|
|||
|
|

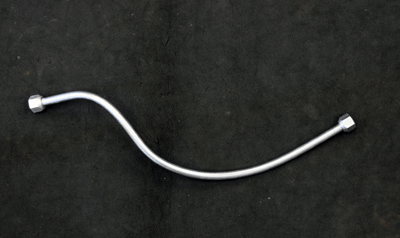

3572-32 |
Hand pump oil pipe (1932-1936) |
$25.00 |
|
|
|||
|
|
3577-15 |
Oil pipe nipple, cadmium plated, made in USA. (1915 to 1922, later 1927 to 1936, except 1936 - 61" twins) |
$3.00 |
|
|
|||
|
|
3601-16 |
Gas valve, nickel plated. These are quality made with brass bodies and steel stems. (1916 to 1939, except 1937 to 1939 45" twins) |
$75.00 |
|
|
|||
|
|
3604-29 |
Gas valve elbow. Made in USA of solid brass and dull nickel plated. (1929 - 1931 45" twins) |
$10.00 |
|
|
|||
|
|
3606-29 |
Gas pipe (1929-1931) |
$35.00 |
|
|
|||
|
|
3606-32A |
Gas pipe (1932-1935) |
$35.00 |
|
|
|||
|
|
3623-32 |
Gas strainer (1932-1938) |
$60.00 |
|
|
|||
|
|
3627-32 |
Gas strainer and cork washers (1932-1938) |
$14.00 |
|
|
|||
|
|
3702-30 |
Front fender, complete. Accurate reproduction made in USA to exact specifications. (1930 to 1933 C singles & 45" twins, 1934 C singles) A packaging charge of $20.00 will be added to the price. |
$475.00 |
|
|
|||
|
|
3710-30 |
Rear fender, complete. Accurate reproduction made in USA to exact specifications. (1930 to 1933 C singles & 45" twins, 1934 C singles) A packaging charge of $20.00 will be added to the price. |
$550.00 |
|
|
|||
|
|
3743-23 |
Rear fender brace bracket bolt, parkerized, made in USA. (1923 to 1939 twins, 1930 to 1934 singles) |
$5.00 |
|
|
|||
|
|
3743-23 kit |
The rear fender brace bracket bolt kit contains 2 each: brace bracket bolts, flat washers, lock washers and nuts. Parkerized, made in USA. (1923 to 1939 twins, 1930 to 1934 singles) |
$11.00 |
|
|
|||
|
|
3748-26 |
Rear mudguard support bolts, parkerized, made in USA. (1926 to 1934 singles, 1929 to 1939 - 45" twins) These bolts secure the rear fender and battery box to the frame, priced each but two are required. |
$2.00 |
|
|
|||
|
|
3748-26 kit |
Rear fender mounting kit, parkerized, made in USA. (1929 to 1957 - 45" twins) |
$32.00 |
|
|
|||
|
|
3749-30 |
Front mudguard oval head bolts, parkerized, made in USA. (1930 to 1934 - 21" singles, 1930 to 1939 twins) These bolts secure the front fender to the forks, priced each but two are required. |
$2.00 |
|
|
|||
|
|
3757-26 |
Rubber mudflap, cloth reinforced as the original, made in USA (1926 to 1941 twins) |
$15.00 |
|
|
|||
|
|
3805-30A |
Front chain guard mounting kit. Includes #3805-30A screws, #3805-30B lock washers, #3814-29 spring, #108 nut and washers. (1930-later) |
$20.00 |
|
|
|||
|
|
3813-29 kit |
Inner chain guard mounting kit, parkerized, made in USA. (1929 to 1934 singles, 1929 to 1940 - 45" twins) Includes 2 each #3813-29 bolts, #3815-29 cupped washers, #3814-29 springs, #0215 washers, #0108 nuts and #0290 cotter pins. |
$15.00 |
|
|
|||
|
|
Rear chain guard kit |
Rear chain guard mounting kit (1929-1952) |
$5.00 |
|
|
|||
|
|
0128/0292 |
Front axle nut kit, includes two each #0128 castle nuts and #0292 cotter pins (1929 to 1936) |
$4.00 |
|
|
|||
|
|
0280 |
1/4" ball bearing, high quality, hardened steel. 32 balls used for the head cups and 28 used for the front wheel hub for 1929 45" twins. |
$0.20 |
|
|
|||
|
|
0282 |
5/16" ball bearing, high quality, hardened steel. 30 balls used for the head cups and 26 used for front wheel hub for 1930 to 1952 45"twins and 1930 to 1934 C singles. |
$0.20 |
|
|
|||
|
|
0283 |
3/8" ball bearing, high quality, hardened steel. 22 balls used for the rear wheel hub for 1926 to 1931 singles & twins. Also used for the hand oil pump for 1927 to 1936. |
$0.40 |
|
|
|||
|
|
3921-30 |
Front axle sleeve. Made in the Netherlands. (1930-1952) |
$100.00 |
|
|
|||
|
|
3923-30 |
Front axle cone. Made in the Netherlands. (1930-1952) |
$50.00 |
|
|
|||
|
|
3926-30 |
Front axle cone lock washer. Made in the Netherlands. (1930-1952) |
$3.00 |
|
|
|||
|
|
3932-30 |
Left inner dirt guard, parkerized, made in the Netherlands (1930 to 1934 C singles, 1930 to 1952 - 45" twins) |
$12.00 |
|
|
|||
|
|
3943-30 |
Front spoke, 0.148" x 8-3/8" (1930-1940) new old stock, cadmium plated, limited quantity |
$2.50 |
|
|
|||
|
|
3947-16 |
Spoke nipple, light (1930-1934 front & rear, 1935-1952 front) new old stock, cadmium plated, limited quantity |
$3.00 |
|
|
|||
|
|
3963-26 |
Sprocket and brake drum lock nut, cadmium plated, sold in pairs (1926 to 1931 singles & 45" twins) |
$32.00 |
|
|
|||
|
|
Inner Tube |
4.00 x 18 high quality inner tube with metel stem, made in USA (1930 - later) |
$14.00 |
|
|
|||
|
|
Rim Strip |
Rim strip for 18" wheels, made in USA (1930 - later) Used to protect inner tube from spoke nipple heads. |
$4.00 |
|
We accept Mastercard, Visa, American Express, Discover, |
|
|
